On top of the world for a reason

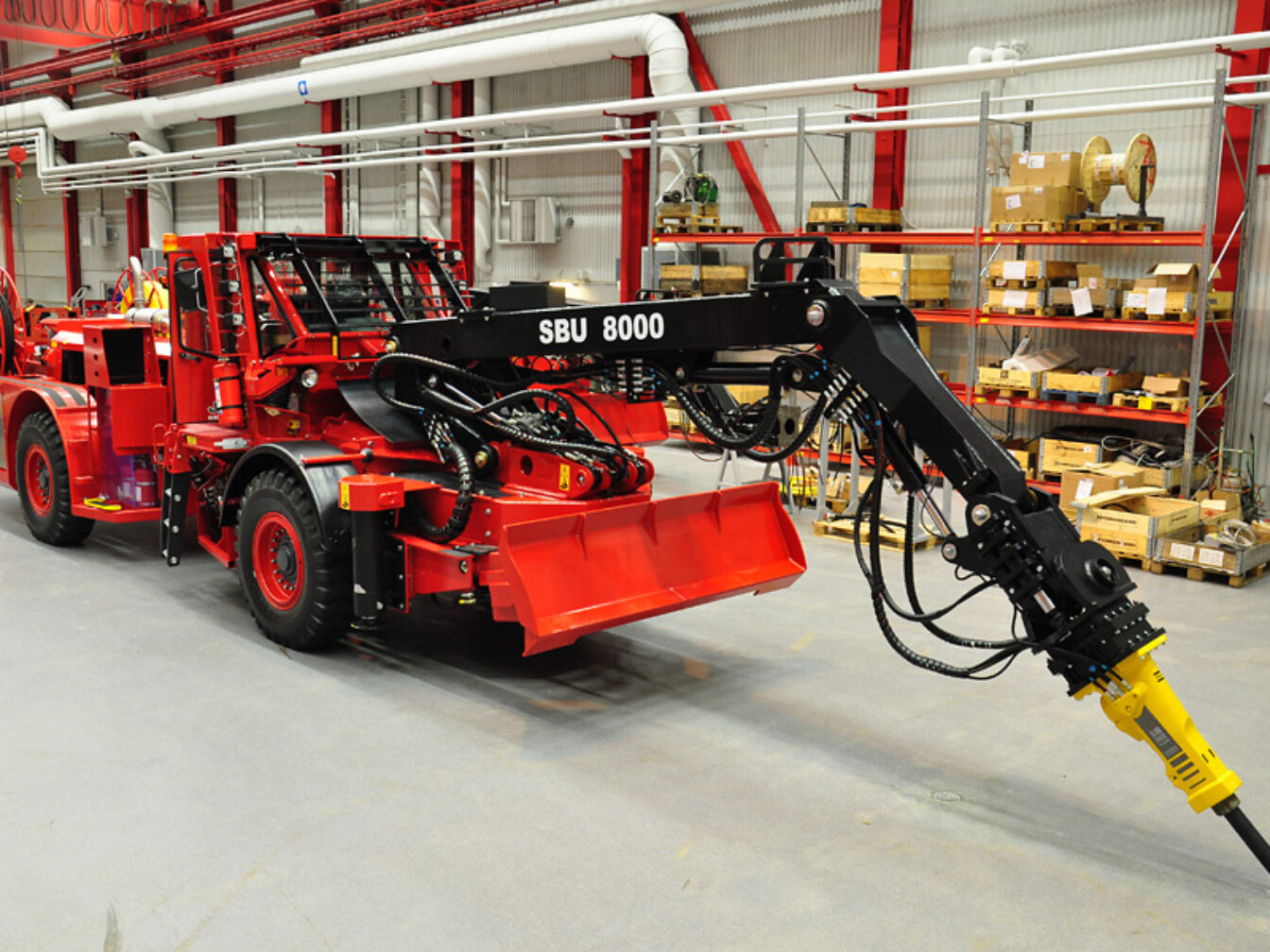

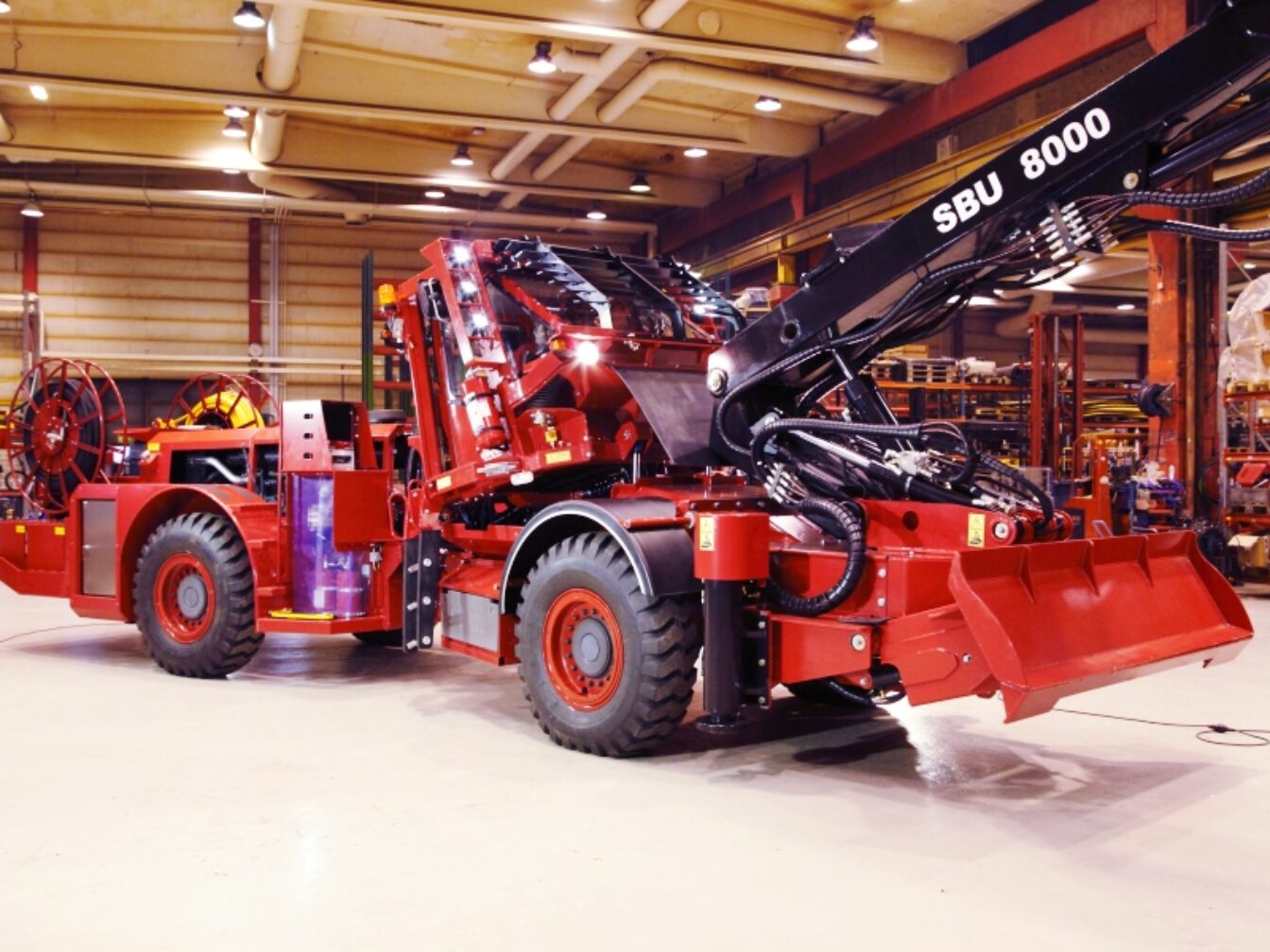

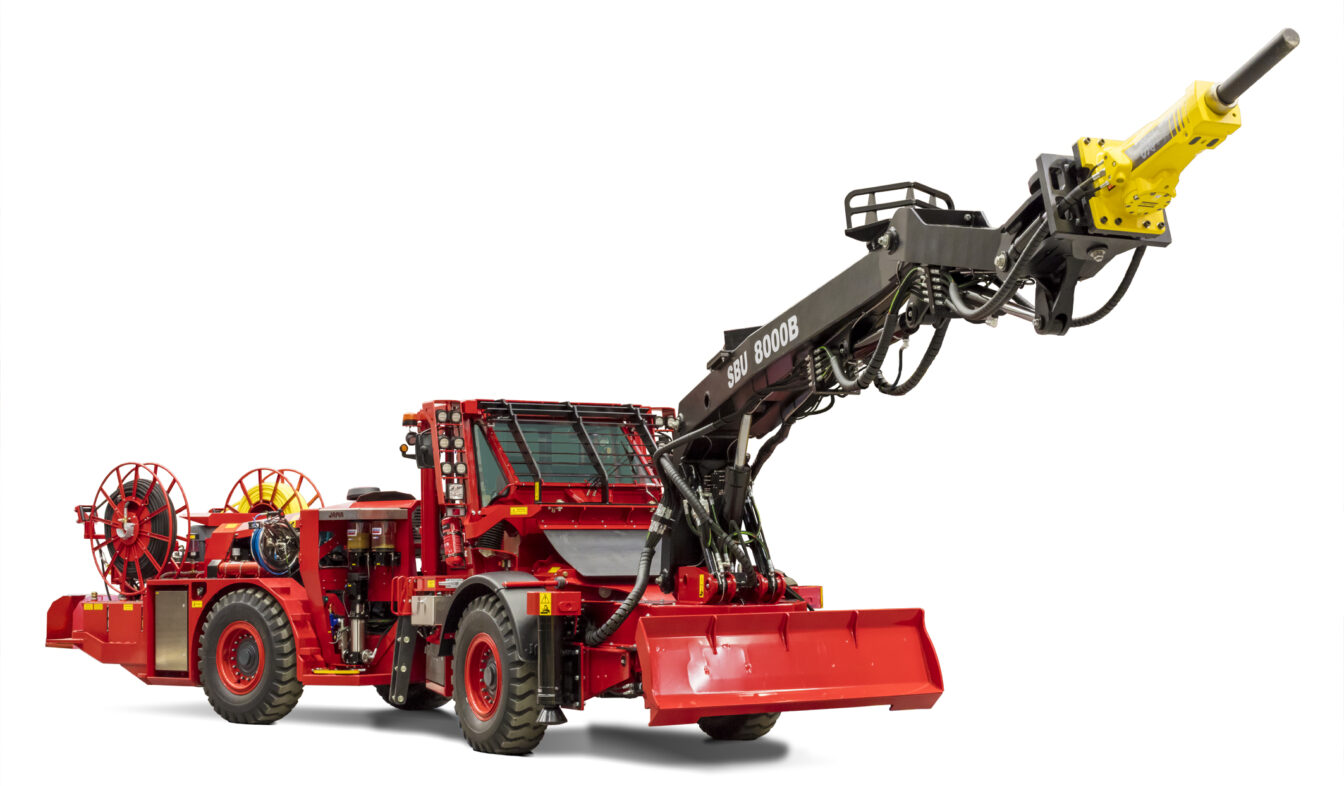

SBU 8000B
- Robust brute force
- High availability
- Safe
- Smart investment
- Unique ergonomics
It is easy to understand why the SBU 8000B has been appointed the world’s best mining machine and is one of the world’s bestselling machines of its kind. It simply has properties valued by those who know best: the users in the mining industry. Safety, ergonomics and productivity are the characteristic properties that give the SBU 8000B a special position in the industry.

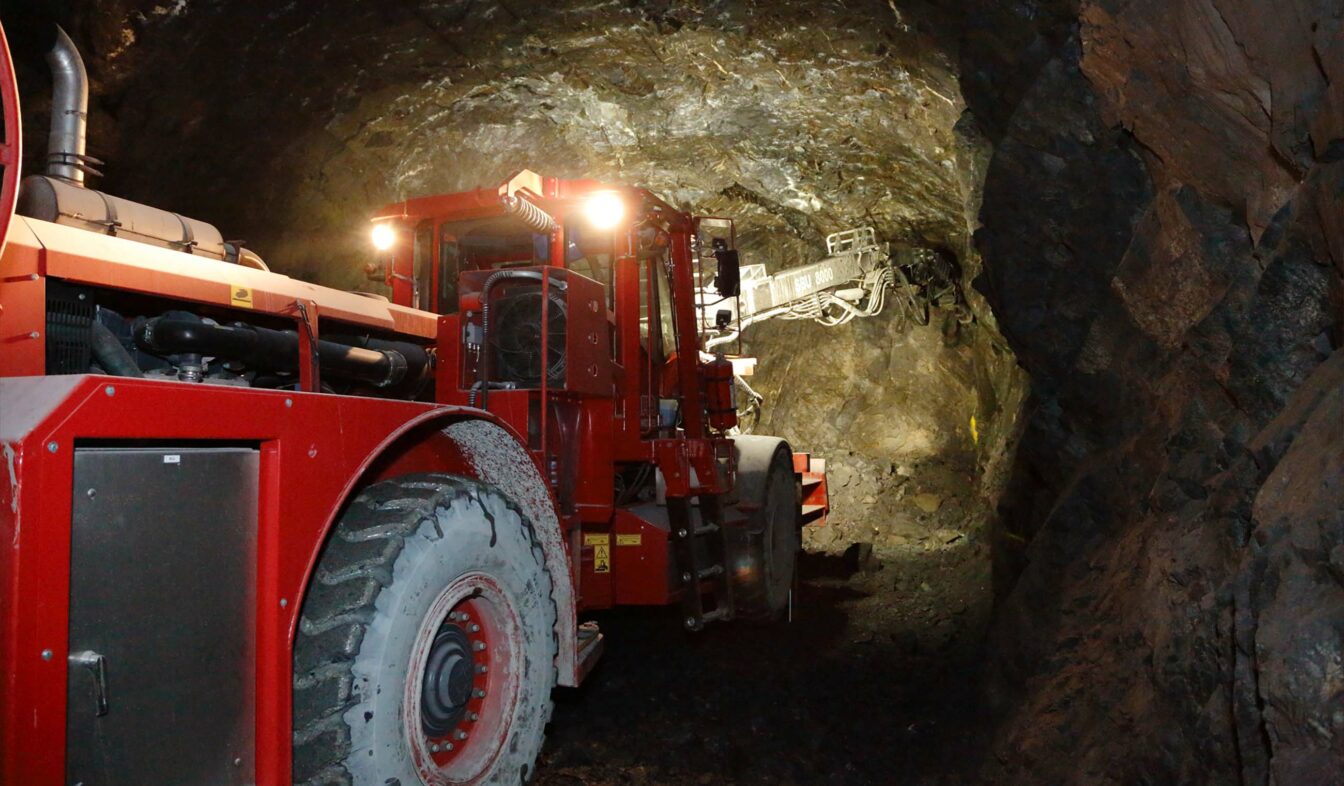

Powerful world class
Jama’s 8000 series has been developed and refined over decades, while working closely with the actual customers who have provided input on what is required to meet the challenges of the modern mining industry. With its raw power, the SBU 8000B, is robust proof that Jama’s ability to innovate continues to take the industry forward.
Availability is everything
Every single detail of the SBU 8000B has been optimized to meet customer needs in the harsh environments that are the daily life of the mining industry. All this combines to a utilization rate that is unrivalled in the market, which is one of the factors that is crucial for efficient and profitable mining.

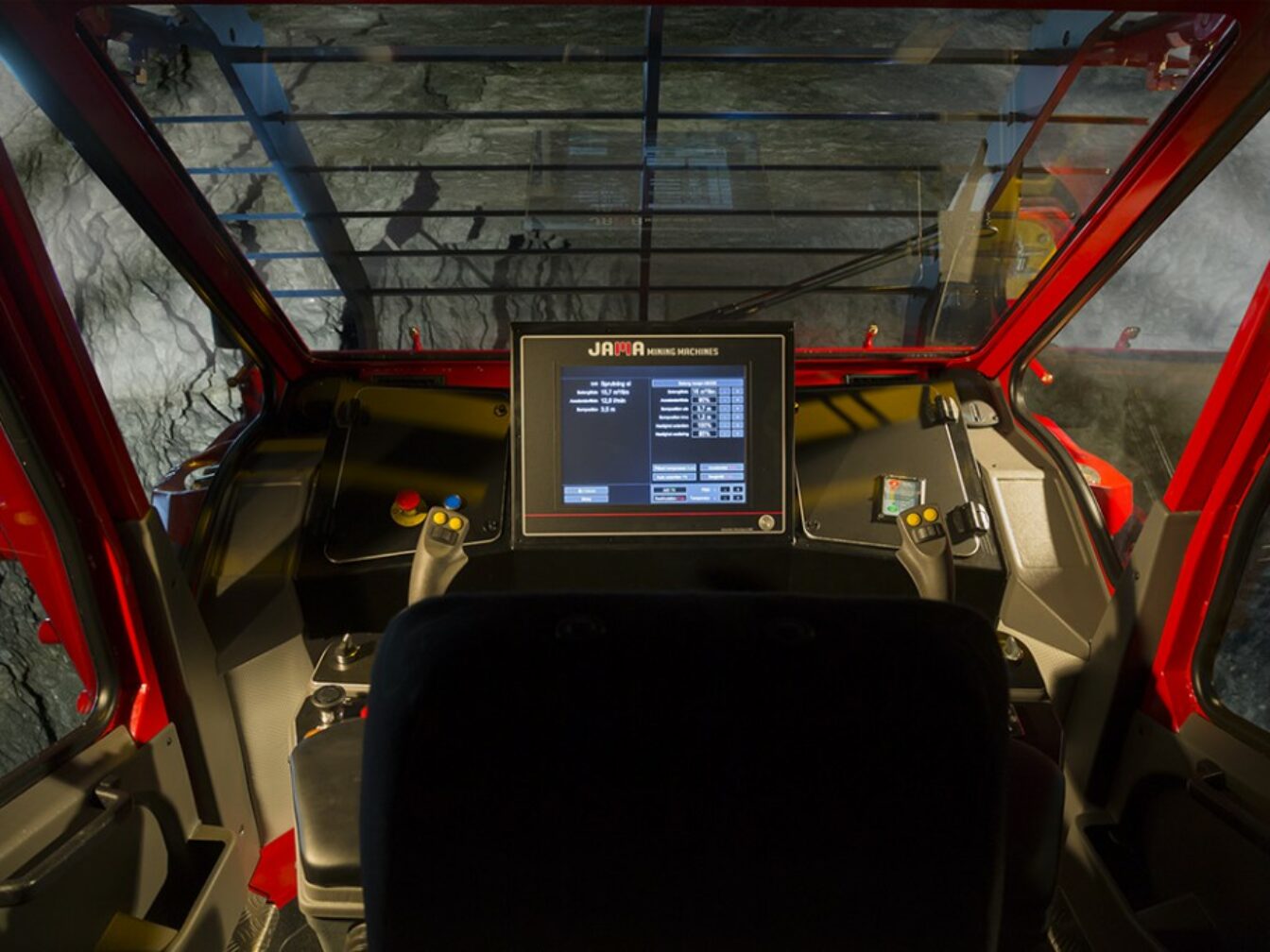

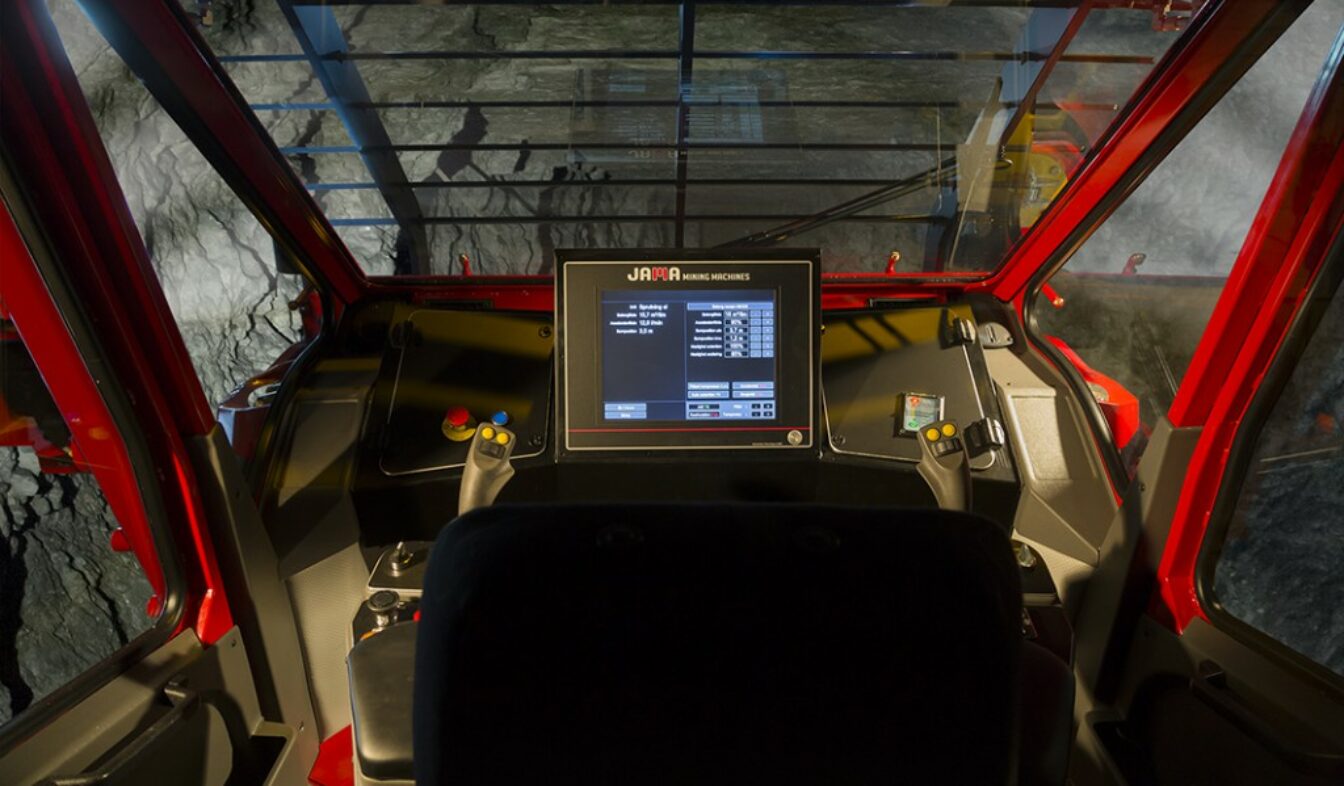

Safe and ergonomic
While caring for the safety and well-being of the operator, the SBU 8000B has been further developed to create a driver environment that is both safe and ergonomic.
Bonus factors
High level of technology
Can be operated remotely
New control system

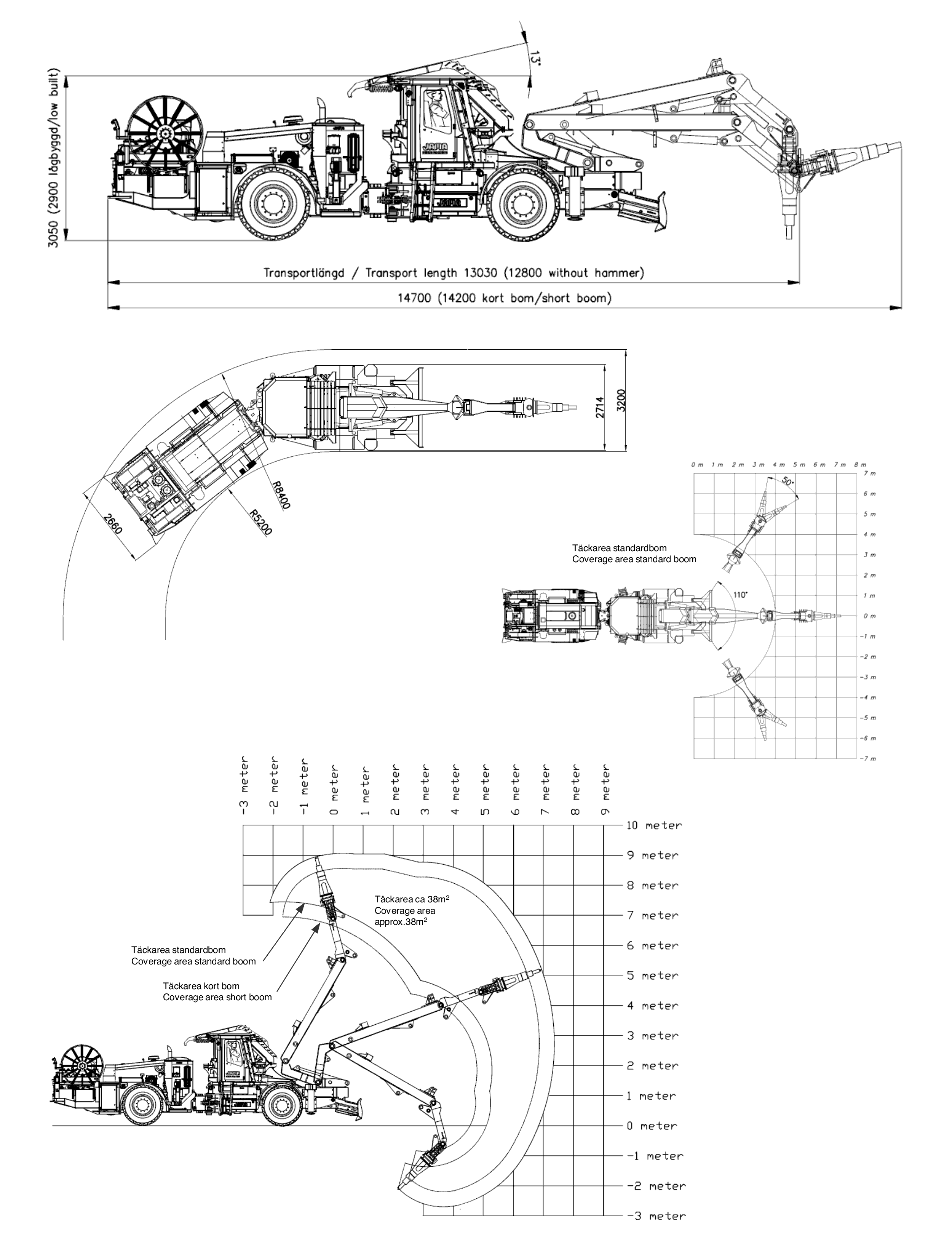

Specifications | SBU 8000B
DIMENSIONS |
Height | 3,050 mm |
Wheelbase | 4,640 mm |
Width | 2,714 mm |
Ground clearance | 370 mm |
Length in transport mode | 14,700 mm (standard boom) |
Turning radius | 5,200 mm |
Total weight | 30,000 kg |
PERFORMANCE |
Max speed horizontal | 25 km/h |
Max speed inclination 1:7 | 9 km/h |
Max speed inclination 1:10 | 16 km/h |
Max inclination fully loaded (up and down) | 1:4 |
BOOM SYSTEM |
Hammer | Option, brand according to customer specification, weight max 450kg. |
Load suspension system | Option * |
CHASSIS |
Steering angle | ±39° |
Dozer blade | Hydraulic operated in the front |
Stabilization | Hydraulic jacks legs in front and rear |
Download full specifications as a PDF
